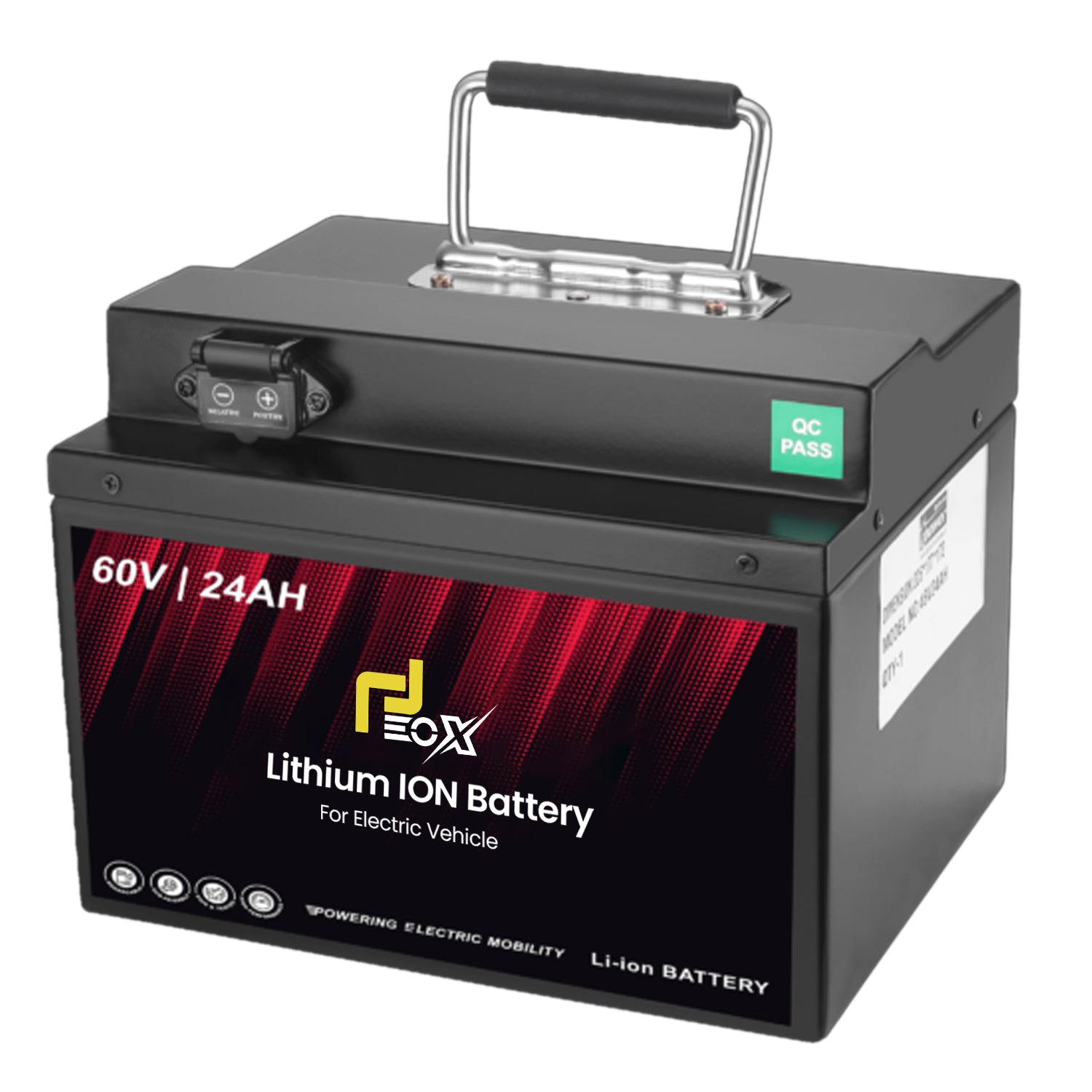

EOX Li-ion 60V 24AH Battery – High-Performance Energy Storage for EV, Solar & Industrial Use
⚙️ Technical Specifications:
| Parameter | Details |
|---|---|
| Battery Model | Eox 60V 24AH |
| Cell Type | Cylindrical NMC 18650 |
| Cell Capacity | 3.7V, 2.6Ah |
| Rated Capacity | 42 Ah @ 25°C |
| Nominal Voltage | 62.9 V |
| Voltage Range | 46.75 V – 71.4 V |
| Total Energy | 2.641 kWh |
| Configuration | 17S16P |
| Standard Charging Current | 10A |
| Maximum Charge Current | 20A (0.5C) |
| Maximum Continuous Discharge | 42A (1C) |
| Peak Discharge Current | 60A (1.5C, for 20 seconds) |
| Cycle Life | ≥ 1000 cycles |
| Operating Temperature Range | Charging: 0°C to +55°C, Discharging: -10°C to +60°C |
| Recommended Storage Temp | 15°C to +35°C |
| IP Rating | IP67 |
| Weight | Approx. 20 ± 1 kg |
| Dimensions (L x W x H) | 220 mm x 169 mm x 338 mm |
| Battery Casing | MS Sheet Metal |
| Communication Protocols | CAN & RS485 |
| Additional Features | Data Logging, Audio-Visual Warning, Bluetooth Connectivity |
| Safety Protections | Over Voltage, Under Voltage, Over Temperature, Short Circuit, Overcharge/Regeneration, Over Discharge |
