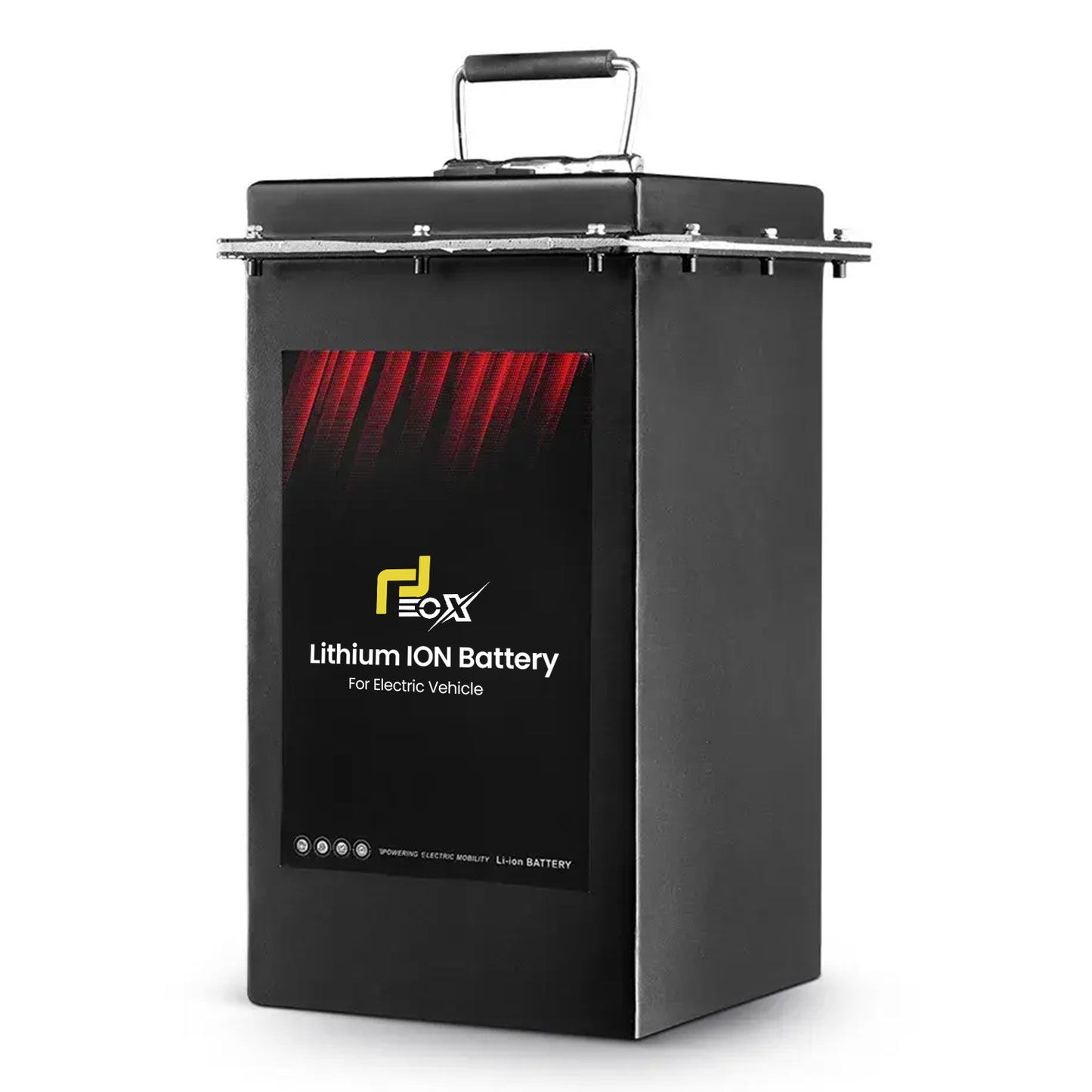

EOX 60V 36Ah Lithium‑ion Battery – Electric Scooter Compatible, Portable, Fast Charging
EOX 60V 36Ah Lithium‑ion Battery – Electric Scooter Compatible, Portable, Fast Charging
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
EOX 60V 36Ah Lithium‑ion Battery – Electric Scooter Compatible
High‑performance NMC 18650 battery with integrated safety protections and weather‑resistant casing for dependable everyday use.
Technical Specifications
| Parameter | Value |
|---|---|
| Battery model | EOX 60V 36Ah |
| Cell capacity | 3.7V, 2.6Ah |
| Cell type | Cylindrical NMC 18650 |
| Rated capacity | 36Ah |
| Nominal voltage | 59.2V |
| Voltage range | 46V to 67.2V |
| Total energy | 2.154 kWh |
| Configuration | 16S14P |
| Standard charging current | 7A (0.2C) |
| Maximum charge current | 11A (0.3C) |
| Max. continuous discharge | 36A (1C) |
| Peak discharge (5 sec) | 54A (1.5C) |
| Cycle life | ~1000 cycles |
| Operating temperature (charge) | 0°C to +55°C |
| Operating temperature (discharge) | −10°C to +60°C |
| Recommended storage temperature | 15°C to +35°C |
| Ingress protection | IP65 |
| Weight | Approx. 14 ± 1 kg |
| Dimensions (L × W × H) | 220 × 165 × 330 mm |
| Casing | Metal (MS) |
| Protections | Over/under voltage, over temperature, short circuit, overcharge/regeneration, over‑discharge |
